1692 One-Way Clutch
1692 One-Way Clutch

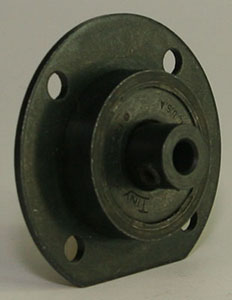

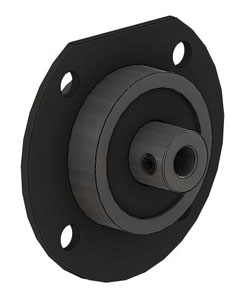

The Tiny-Clutch 1692 One-Way Clutch is based off of our D75PM Roller Clutch. This clutch features heavy duty springs, a 1/4" | 6.4 mm bore & mounts to the shaft with a set screw. This clutch is available in Left hand drive & replaces Pellerin Milnor part # 54M105. If you have special needs for your application please Let Us Know.
| Specifications: | Options: | ||
| Max Torque | 10 in/lbs | 1.1 Nm | Bore | 3/16" | 4.8 mm |
| Max Speed |
6000 rpm | Mounting | Set Screw |

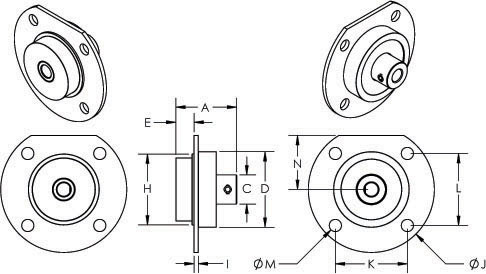

| Dimension A | 0.85 in | 21.6 mm | Drive | Counter Clockwise |
| Dimension C |
0.41 in | 10.4 mm | Add-Ons | Heavy Duty Springs |
| Dimension D |
1.05 in | 26.7 mm | ||
| Dimension E | 0.25 in | 6.4 mm | ||
| Dimension H | 0.99 in | 25.1 mm | ||
| Dimension I | 0.06 in | 1.5 mm | ||
| Dimension J | 1.75 in | 44.5 mm | ||
| Dimension K | 1.00 in | 25.4 mm | ||
| Dimension L | 1.00 in | 25.4 mm | ||
| Dimension M | 0.17 in | 4.3 mm | ||
| Dimension N | 0.75 in | 19.1 mm | ||
