1808 Backstopping Clutch

1808 Tiny-Clutch, Backstopping Clutch, Milford Rivet SH152

1808 Backstopping Clutch

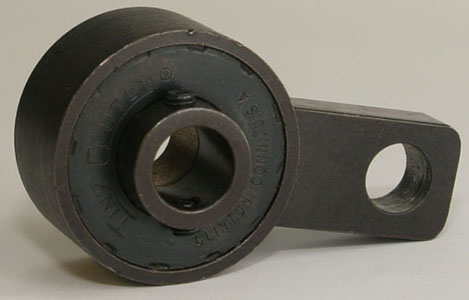

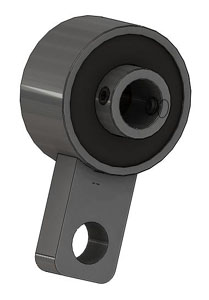

The Tiny-Clutch 1808 backstopping roller clutch is a miniature roller and cam type one-way clutch from our D-Series line of clutches. The 1808 clutches are most frequently used for backstopping a load, or converting oscillating motion to rotary motion. These clutches use our proven cam and roller principle for long life with trouble free performance. The cam, housing and rollers are made of hardened steel and each roller is energized by a spring which is held square and centered in a drilled pocket. The design of the clutch allows for near zero backlash as well as high free-wheeling speeds. The clutch will not jam in the free direction.

The 1808 is based on our D125MR Roller Clutch, featuring an arm that allows the housing to be fixed to ground for backstopping applications or can be used as the input for oscillating applications. This clutch has a inch (12.7mm) bore, the cam is screwed to your shaft with two screws at 180 instead of the usual 90, power may be applied to the clutch through either the arm or the cam. This is the original equipment clutch in Milford Rivet model 63 and model 64 rivet machines and replaces Milford Rivet Part # SH152. If you have special needs for your application please Let Us Know.

1808 Backstopping Clutch Specifications:

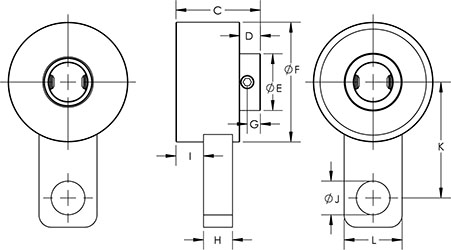

1808 Tiny-Clutch, Backstopping Clutch, Milford Rivet SH152, Dimensions

Maximum Torque = 50lbs-in | 5.6Nm Dimension E = .74in | 18.7mm Dimension J = .44in | 11.1mm
Maximum Speed = 2,000 RPM Dimension F = 1.55in | 39.4mm Dimension K = 1.50in | 38.1mm
Typical Weight = 7.1oz | 202g Dimension G = .17in | 4.3mm Dimension L = .75in | 19.1mm
Dimension C = 1.09in | 27.8mm Dimension H = .38in | 9.5mm Bore = .50in | 12.7mm
Dimension D = .27in | 6.8mm Dimension I = .36in | 9.1mm Set Screw = 10-32 x 2

1808 Backstopping Clutch Direction:

Right handed* clutches drive clockwise and slip counter clockwise.
Left handed clutches drive counter clockwise and slip clockwise.

* Most Common

1808 Backstopping Clutch Downloads:

1808 Backstopping Clutch .pdf

1808 Tiny-Clutch, Backstopping Clutch, Milford Rivet SH152

If you have an 1808 Backstopping Clutch that is not working properly, Contact US. If your housing is not damaged, we might be able to rebuild your existing clutch for less than it would cost to replace it.
