1869 Fractional Revolution Pulley Clutch

1869 Fractional Revolution Pulley Clutch, Federal APD 30-4325

1869 Fractional Revolution Pulley Clutch

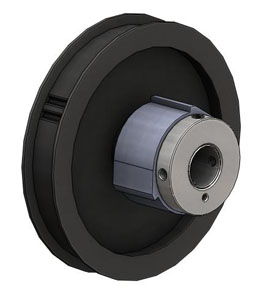

The Tiny-Clutch 1869 Fractional Revolution Pulley Clutch is based off of our SP75B Wrap Spring Clutch. This clutch features a 48 tooth, XL pitch pulley & a 3 lug (Third Revolution) collar. It has a 1/2" | 12.7mm bore, mounts with a set screw & cross hole, & replaces Federal APD Part # 30-4325. If you have special needs for your application please Let Us Know.

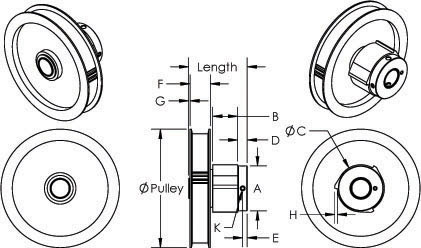

1869 Fractional Revolution Pulley Clutch, Federal APD 30-4325, Dimensions
Specifications: Options:
Max Torque 50 in/lbs | 5.6Nm Bore 1/2" | 12.7 mm
Length
1.63 in | 41.4 mm Mounting Set Screw & Cross Hole
Pulley 3.29 in | 83.6 mm Drive Counter Clockwise
Dimension A
1.25 in | 31.8 mm Input Hub
Dimension B
0.70 in | 17.8 mm Function Indexing
Dimension C
1.31 in | 33.3 mm # of Trip Lugs
3 Lugs (Third Revolution)
Dimension D 0.47 in | 11.9 mm Hub Type
48 tooth, XL pitch pulley
Dimension E 0.12 in | 3.0 mm
Dimension F 0.56 in | 14.2 mm
Dimension G 0.04 in | 1.0 mm
Dimension H 0.07 in | 1.8 mm
Dimension K 8/32 Set Screw
& 1/8" Cross Hole

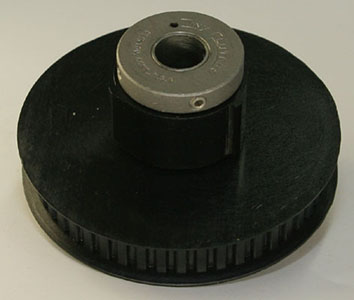

1869 Fractional Revolution Pulley Clutch, Federal APD 30-4325

Contact us with your needs & we will help you choose the right clutch!
