1915 Back Stopping Clutch
1915 Back Stopping Clutch

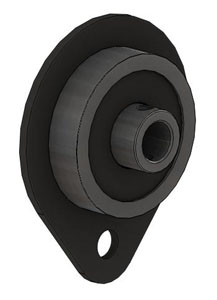

The Tiny-Clutch 1915 Back Stopping Clutch is based off of our D75MR Roller Clutch. This clutch features a 1/4" | 6.4mm bore & mounts to the shaft with a crosshole. This clutch is available in Right hand drive & replaces Milford Rivet Part # SH194. If you have special needs for your application please Let Us Know.
| Specifications: | Options: | ||
| Max Torque | 10 in/lbs | 1.1Nm | Bore | 1/4" | 6.4 mm |
| Max Speed |
6000 rpm | Mounting | Crosshole |

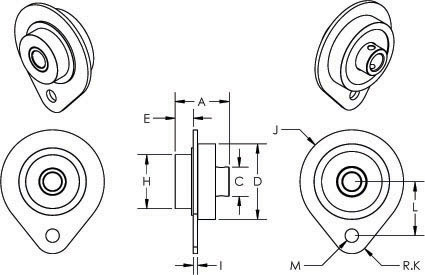

| Dimension A | 0.75 in | 19.1 mm | Drive | Clockwise |
| Dimension C |
0.41 in | 10.4 mm | ||
| Dimension D |
1.05 in | 26.7 mm | ||
| Dimension E | 0.25 in | 6.4 mm | ||
| Dimension H | 0.75 in | 19.1 mm | ||
| Dimension I | 0.06 in | 1.5 mm | ||
| Dimension J | 1.44 in | 36.6 mm | ||
| Dimension K | 0.25 in | 6.4 mm | ||
| Dimension L | 0.75 in | 19.1 mm | ||
| Dimension M | 0.19 in | 4.8 mm | ||
