2865 Overrunning Roller Clutch

2865 Overrunning Roller Clutch

2865 Overrunning Roller Clutch

The Tiny-Clutch 2865 overrunning roller clutch is a miniature roller and cam type one-way clutch from our D-Series line of clutches. The D-Series clutches are most frequently used to allow a driven member to overrun the input, or for backstopping a load, they can also function to convert oscillating motion to rotary motion. These clutches use our proven cam and roller principle for long life with trouble free performance. The cam, housing and rollers are made of hardened steel and each roller is energized by a spring which is held square and centered in a drilled pocket. The design of the clutch allows for near zero backlash as well as high free-wheeling speeds. The clutch will not jam in the free direction.

The 2865 overrunning roller clutch is based on our D125 Roller Clutch. The knurled hub on the housing allows installation of a pulley, gear or sprocket. This clutch has a inch (12.7mm) bore, the cam is screwed and/or pinned to your shaft, and power may be applied to the clutch through either the housing or the cam. If you have special needs for your application please Let Us Know.

2865 Overrunning Roller Clutch Specifications:

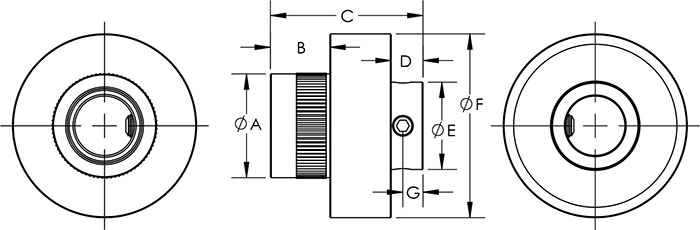

2865 Overrunning Roller Clutch, Dimensions

Maximum Torque = 50lbs-in | 5.6Nm Dimension C = 1.28in | 32.6mm Bore = 1/2in | 12.7mm
Maximum Speed = 2,000 RPM Dimension D = .27in | 6.8mm Set Screw = 10-32
Typical Weight = 4.6oz | 130g Dimension E = .74in | 18.7mm Cross Hole = 1/8in | 3.2mm
Dimension A = .874in | 22.2mm Dimension F = 1.55in | 39.3mm
Dimension B = .50in | 12.7mm Dimension G = .17in | 4.3mm

2865 Overrunning Roller Clutch Direction:

Right handed clutches drive clockwise and slip counter clockwise.
Left handed clutches drive counter clockwise and slip clockwise.

2865 Overrunning Roller Clutch Downloads:

2865 Overrunning Roller Clutch .pdf

2865 Overrunning Roller Clutch

We can provide a variety of adapter hubs or make one to your specifications to connect our clutch to your application.

Contact us during your design phase & we
will build the right clutch for your application!
