3078 Magnetic Winding Clutch
3078 Magnetic Winding Clutch

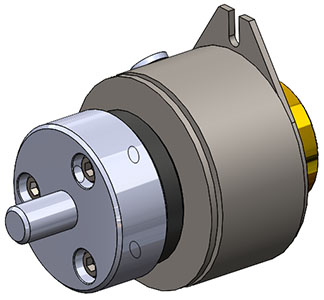

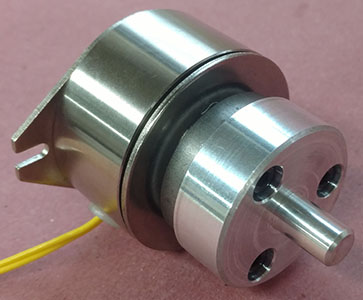

The Tiny-Clutch 3078 Magnetic Winding Clutch is based off of our M75A Magnetic Spring Clutch. This clutch features a custom 5/16x1/2" hub adapter, a 5/16" | 7.9mm bore & set screw mounting. It is available in both left and right hand drive & operates on 12VDC. This is the original equipment clutch in MovieStuff Retroscan Mark II film scanners. We have an updated bushing design to deal with some of the shortcomings of the MovieStuff machines, we can rebuild your existing clutches with the new bushings or sell you complete new clutches. If you have special needs for your application please Let Us Know.

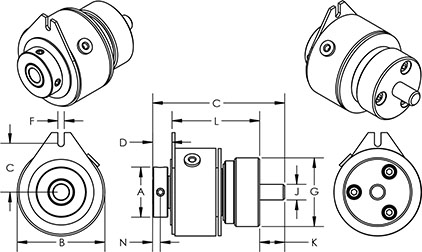

| Specifications: | Options: | ||
| Max Torque | 50 in/lbs | 5.6 Nm | Bore | 5/16" | 7.9 mm |
| Max Speed |
1200 rpm | Mounting | Set Screw |
| Dimension A | 1.00 in | 25.4 mm | Voltage | 12VDC |
| Dimension B |
1.75 in | 44.5 mm | ||
| Dimension C |
0.98 in | 24.8 mm | ||
| Dimension D | 0.39 in | 9.8 mm | ||
| Dimension F | 0.13 in | 3.3 mm | ||
| Dimension G | 1.37 in | 34.8 mm | ||
| Dimension J | 0.31 in | 7.9 mm | ||
| Dimension K | 0.50 in | 12.7 mm | ||
| Dimension L | 1.75 in | 44.4 mm | ||
| Dimension N | 0.16 in | 3.9 mm | ||
3078 Magnetic Winding Clutch Direction:
3078-RH: Right handed clutches drive clockwise and slip counter clockwise.
3078-LH: Left handed clutches drive counter clockwise and slip clockwise.
