1479 Fractional Revolution Sprocket Clutch
1479 Fractional Revolution Sprocket Clutch

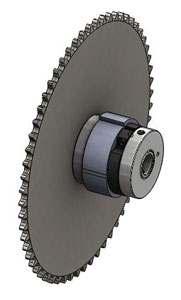

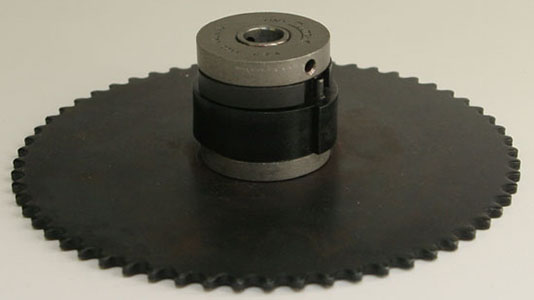

The Tiny-Clutch 1479 Fractional Revolution Sprocket Clutch is based off of our SP75D Wrap Spring Clutch. This clutch features a 60 tooth, 25 pitch Sprocket, a 2 lug (Half Revolution) collar & an over-tavel stop. It has a 3/8" | 9.5mm bore, mounts with a cross hole, & replaces R. Funk Part # A8524. If you have special needs for your application please Let Us Know.

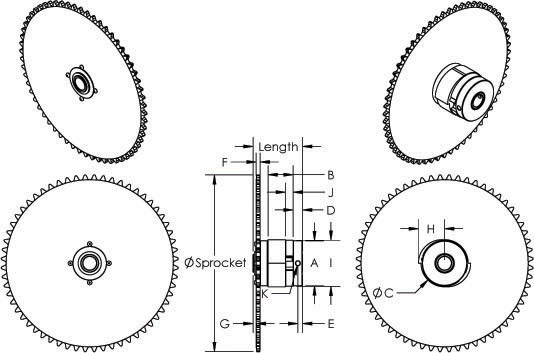

| Specifications: | Options: | ||
| Max Torque | 50 lbs-in | 5.6 Nm | Bore | 3/8" | 9.5 mm |
| Length |
1.32 in | 33.5 mm | Mounting | Cross Hole |
| Sprocket | 4.92 in | 125.0 mm | Drive | Counter Clockwise |
| Dimension A |
1.25 in | 31.8 mm | Input | Hub |
| Dimension B |
0.70 in | 17.8 mm | Function | Indexing |
| Dimension C |
1.31 in | 33.3 mm | # of Trip Lugs |
2 Lug (Half Revolution) |
| Dimension D | 0.26 in | 6.6 mm | Hub Type |
60 tooth, 25 pitch Sprocket |
| Dimension E | 0.13 in | 3.3 mm | Add-Ons |
Over-Travel Stop |
| Dimension F | 0.11 in | 2.8 mm | ||
| Dimension G | 0.09 in | 2.3 mm | ||
| Dimension H | 0.72 in | 18.3 mm | ||
| Dimension I | 1.28 in | 32.5 mm | ||
| Dimension J | 0.21 in | 5.3 mm | ||
| Dimension K | 1/8" Cross Hole | ||
