Special Clutches:

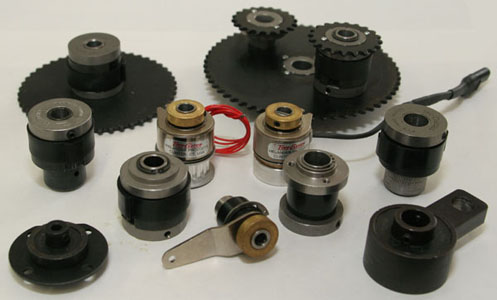

Tiny-Clutch, Group of Special Clutches

Special Clutches:

The clutches listed below are a small selection of the special clutches we have built for some of our customers.  Most of these clutches are based off of our standard clutches, but they give you a good idea of some of the options we have available. If you have special needs for your application please Let Us Know.

Special Clutches:

  Part # Base Clutch Details
2425 Tiny-Clutch, Winding Clutch 2425 AD50 6MM Bore.
Set Screw.
5/8" Plain Drum With Two Flats.
Reverse Mounted Arm.
2871 Overrunning Roller Clutch 2871 D75 1/4" Bore.
Set Screw & Cross Hole.
1915 Tiny-Clutch, Back Stopping Clutch, Milford Rivet SH194 1915 D75MR 1/4" Bore.
Cross Hole.
Milford Rivet SH194.
1692 Tiny-Clutch, One-Way Clutch, Pellerin Milnor 54M105 1692 D75PM 3/16" Bore.
Set Screw.
Heavy Duty Springs.
Pellerin Milnor 54M105.
2872 Overrunning Roller Clutch Hot Stamper 2872 D93A 3/8" Bore.
Set Screw & Cross Hole.
2873 Overrunning Roller Clutch Hot Stamping, K150-11, K150-12 2873 D93A 3/8" Bore.
Set Screw & Keyway.
2874 Overrunning Gear Clutch Hot Stamper, K150-08, K150-09 2874 D93A 20 Tooth Gear.
3/8" Bore.
Set Screw & Keyway.
2875 Overrunning Gear Clutch Hot Stamper 2875 D93A 24 Tooth Gear.
3/8" Bore.
Set Screw & Keyway.
2876 Overrunning Gear Clutch Hot Stamping 2876 D93A 20 Tooth Gear.
3/8" Bore.
Cross Hole.
2877 Overrunning Gear Clutch Hot Stamping 2877 D93A 24 Tooth Gear.
3/8" Bore.
Cross Hole.
2865 Overrunning Roller Clutch 2865 D125 1/2" Bore.
Set Screw & Cross Hole.
2866 Overrunning Roller Clutch 2866 D125 1/2" Bore.
Set Screw & Keyway.
2536 Tiny-Clutch, One Way Roller Clutch, Perey Turnstiles 2536 D125 No Bore.
10mm External Square.
Special Housing With Arm.
2795 Overrunning Gear Clutch, Ribbonmasters / Crocodile Industries, Hot Stamping 2795 D125 16 Tooth Gear.
1/2" Bore.
Cross Hole.
Ribbonmasters / Crocodile Industries.
1808 Tiny-Clutch, Backstopping Clutch, Milford Rivet SH152 1808 D125MR 1/2" Bore.
Two Set Screws At 180.
Milford Rivet SH152.
2417 Tiny-Clutch, Magnetic On-Off Clutch, Northrop Grumman B7040-8334 B7050-8344 2417 M50 Cross Pin Hub Adapter.
Custom Pigtail.
8MM Bore.
Set Screw & Cross Hole.
2393 Tiny-Clutch, Magnetic Pulley Clutch, Kwik-Way 794-8687-38, Van Norman 2393 M50D 16 Tooth Timing Pulley.
5/16" Bore.
Set Screw.
1868 Tiny-Clutch, Indexing Pulley Clutch, Federal APD 30-4117 1868 SP75B 48 Tooth Timing pulley.
2 Lugs. (Half Revolution)
1/2" Bore.
Set Screw & Cross Hole.
Federal APD 30-4117.
1869 Tiny-Clutch, Fractional Revolution Pulley Clutch, Federal APD 30-4325 1869 SP75B 48 Tooth Timing pulley.
3 Lugs. (Third Revolution)
1/2" Bore.
Set Screw & Cross Hole.
Federal APD 30-4325.
1478 Tiny-Clutch, Indexing Sprocket Clutch, R. Funk A8523 1478 SP75D 48 Tooth Sprocket.
1 Lug. (Single Revolution)
Over-Travel Stop.
3/8" Bore.
Cross Hole.
R. Funk A8523.
1479 Tiny-Clutch, Fractional Revolution Sprocket Clutch, R. Funk A8524 1479 SP75D 60 Tooth Sprocket.
2 Lugs. (Half Revolution)
Over-Travel Stop.
3/8" Bore.
Cross Hole.
R. Funk A8524.
1930 Tiny-Clutch, Indexing Clutch, R. Funk A18676 1930 SP75D 19 Tooth Sprocket.
1 Lug. (Single Revolution)
Over-Travel Stop.
3/8" Bore.
Cross Hole.
R. Funk A18676.
2579 Tiny-Clutch, Single Revolution Spring Clutch, Es-Te 240-241659 8523 2579 SP75D Plain Drum.
1 Lug. (Single Revolution)
Over-Travel Stop.
3/8" Bore.
Cross Hole.
2580 Tiny-Clutch, Half Revolution Spring Clutch, Es-Te 240-241658 8524 2580 SP75D Plain Drum.
2 Lugs. (Half Revolution)
Over-Travel Stop.
3/8" Bore.
Cross Hole.
2448 Tiny-Clutch, Overrunning Spring Clutch, Automated Packaging Systems 200339A1 2448 SP75E 3-Hole Drum.
0 Lugs. (Overrunning)
1/2" Bore.
Set Screw.

Contact us during your design phase & we will help you
choose the right Clutch for your application!
