2448 Overrunning Spring Clutch

2448 Overrunning Spring Clutch

2448 Overrunning Spring Clutch

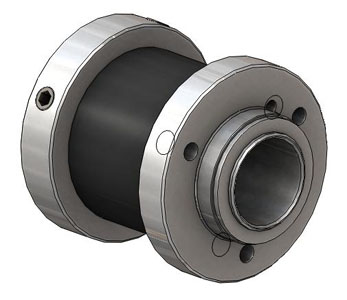

The Tiny-Clutch 2448 Overrunning Spring Clutch is based off of our SP75E Wrap Spring Clutch. This clutch features a 0 lug collar. It has a 1/2" | 12.7mm bore & mounts with a set screw. If you have special needs for your application please Let Us Know.

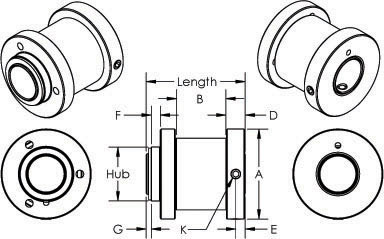

2448 Overrunning Spring Clutch, Dimensions
Specifications: Options:
Max Torque 50 in/lbs | 5.6 Nm Bore 1/2" | 12.7 mm
Length
1.38 in | 35.1 mm Mounting Set Screw
Hub 0.75 in | 19.1 mm Drive Clockwise, Counter Clockwise
Dimension A
1.25 in | 31.8 mm Input Hub, Shaft
Dimension B
0.70 in | 17.8 mm Function Overrunning
Dimension D
0.27 in | 6.9 mm # of Trip Lugs
0 Lug
Dimension E 0.13 in | 3.3 mm Hub Type
3-Hole Hub (8-32 Holes On 0.938" B.C.)
Dimension F 0.12 in | 3.0 mm
Dimension G 0.07 in | 1.8 mm
Dimension K 1/8" Cross Hole

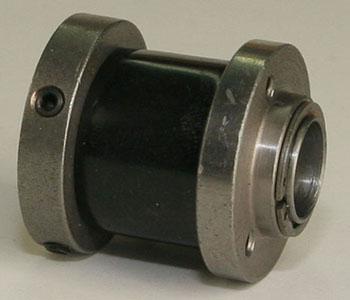

2448 Overrunning Spring Clutch

Contact us with your needs & we will help you choose the right clutch!
