Solenoids:

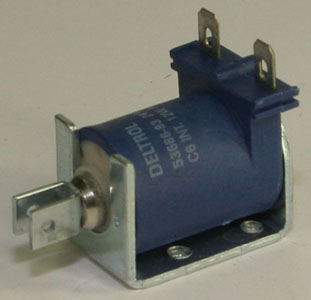

Solenoid - Tiny-Clutch

Solenoids:

We have a variety of solenoids available, they can be purchased with our clutches or separately.  The solenoids listed below are our most popular options, we have others available.

Popular Solenoids:

Part# Deltrol Part# Style Voltage Duty Cycle Power Resistance
Ohms
1734 53685-81 C-6 12VDC Continuous 4.7W 1.18
1926 53686-81 C-6 12VDC intermittent 12W 13
1577 53685-83
56194-60
C-6 24VDC Continuous 4.7W 124
1723 53686-83
56330-60
C-6 24VDC intermittent 12W 50.8
1575 53687-94
56280-60
C-6 120VAC
60hz
Continuous 6.8VA 776
1576 54522-60 C-6 120VAC
50hz
Continuous 15.4VA 933
1582 53688-94 C-6 120VAC
60hz
intermittent 19.5VA 327

2014 Solenoid Pricing:

Quantity 1-10 11-25 26-50 51-100 101-250 251-500 500+
Price Each $37.77 $31.48 $27.70 $25.18 $23.92 $23.17 $21.91

We have additional solenoids available on our Clearance Page.

We have many other solenoids available, contact us with your needs.
