AD-Series Autodisconnect Clutches

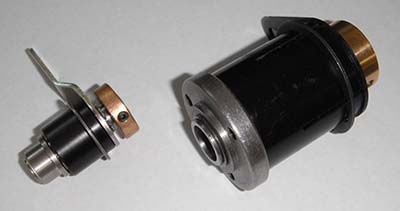

Collection of Autodisconnect Spring Clutches

AD-Series Autodisconnect Clutches:

The AD-Series Tiny-Clutches combine the high torque capacity of a spring clutch with a bidirectional free wheeling output. These clutches are suited for use in applications such as, coil winding, spool winding, film drives or any similar application requiring an automatically free wheeling clutch. When torque is applied to the input it forces the spring to wrap down on the output drum. In this condition the clutch will drive. When torque is removed from the input, the spring is free to relax and unwind, thus decoupling the input from the output automatically, leaving the output free to rotate in both directions. The sleeve is screwed, pinned or keyed to your shaft & clutch may be driven through either the sleeve or the hub.

AD-Series Tiny-Clutches are available for Shafts up to 11/8" & torque loads up to 350lbs-in | 39.5Nm. Special input or output hubs are available upon request to suit customers' needs.  We will design & build special or modified clutches for your application using stock components.  Clutches can be supplied with gears, sprockets, pullies or as complete mechanical assemblies consisting of clutch, shaft and adjacent parts.

Standard AD-Series Clutches:

  Bore-Inch Bore-Metric
  Min. Max. Min. Max. Max. Torque Notes
AD50 1/8" 5/16" 3mm 8mm 15lbs-in | 1.7Nm Knurled or Plain Drum
AD93 5/16" 3/8" 8mm 10mm 60lbs-in | 6.8Nm 3-Hole Hub
AD93SL 5/16" 3/8" 8mm 10mm 60lbs-in | 6.8Nm Knurled or Plain Drum
AD93XS 5/16" 3/8" 8mm 10mm 60lbs-in | 6.8Nm Plain Drum For Sprockets
AD100A 3/8" 1/2" 10mm 13mm 250lbs-in | 28.2Nm 3-Hole Hub
AD200A 3/8" 5/8" 10mm 16mm 350lbs-in | 39.5Nm 3-Hole Hub
AD200B 9/16" 11/8" 15mm 28mm 350lbs-in | 39.5Nm 4-Hole Hub
Autodisconnect Clutch Side ViewAutodisconnect Clutch End View

Autodisconnect Clutch Mounting:

The AD-Series clutches should be mounted so that a stationary pin engages the slot in the torque arm. It is important that the torque arm is not firmly screwed down but allowed to float, as this may prevent the clutch from operating normally.

Contact us during your design phase & we will help you
choose the right Clutch for your application!
